Network Innovations

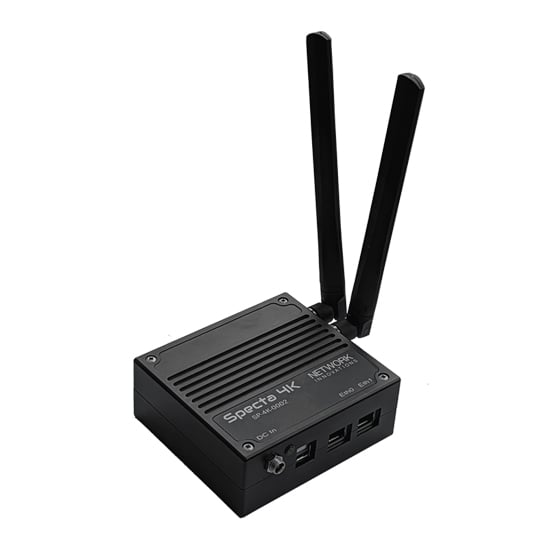

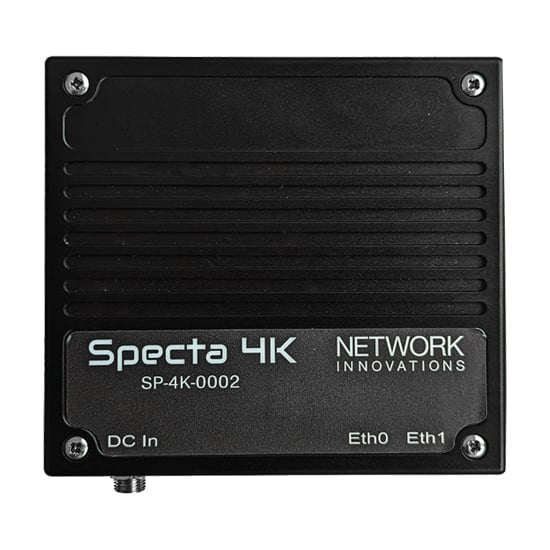

Specta 4K

Specta 4K is a small, easy-to-use video encoder and compressor to help transmit video over any network regardless of topology or reliability. Specta compresses your existing video to be transmitted over fixed, cellular, or satellite networks.

  • Up to 4K streaming at very low bitrates
  • Fast configuration and deployment
  • Compatible with leading IP security cameras
  • Specta prioritizes energy efficiency for reduced hardware and power needs



Download Datasheet

Datasheet [863kb]

The Specta 4K was developed as an easy entry into low bitrate 4K transmission. It is quickly configurable and can be used in a variety of scenarios, supporting a wide range of video inputs.

Take it with you on a drone mission and transmit reliable, high-quality video over the cellular network. It can be used in an outstation with up to 4 camera inputs and offers more situational awareness than standard encoders with limited camera inputs. Specta 4K supports just about any IP security camera on the market, including ONVIF PTZ cameras with full remote control via your VMS.

Support for USB devices is also available, including small webcam-like devices or HDMI/SDI adapters to increase compatibility with more cameras. Setup is as simple as assigning server and IP settings in the USB configurator, powering on the device and controlling it remotely via the server. Once the connection is established, the server distributes your compressed video feeds as RTSP/ ONVIF S in H.264/H.265 format, keeping the bit rate low.

ni_spectra-4k_02

  • Video input
    ONVIF/RTSP IP cameras, USB/UVC devices
  • Networks
    2x RJ45, 2x USB (RNDIS, WiFi, Ethernet), 1x LTE modem
  • Input formats
    YUYV, NV12, I420, MJPEG, H.264, H.265
  • Output formats
    Formats RTSP/ONVIF S plus metadata, H.264, H.265
  • Compression
    4Kbps to 2Mbps (compressed)
  • Dimensions
    110 x 80 x 42 mm
  • Power supply
    12VDC at 2A recommended,
    8W nominal (12W peak)

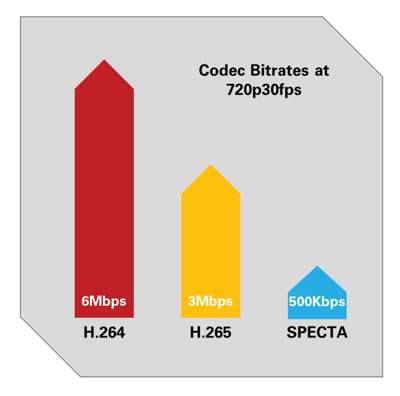

Optimized for high quality, low bit rate

ni_spectra-4k_codec-comparison
  • Compresses high-resolution videos by more than 90% while maintaining high quality
  • Fast and efficient compared to other video standards, <20ms encoding latency
  • Supports 4K resolution, multiple 1080p cameras
  • Compresses ONVIF and RTSP streams; almost all USB cameras are supported
  • Simultaneous transmission, recording and control of multiple cameras from a single device

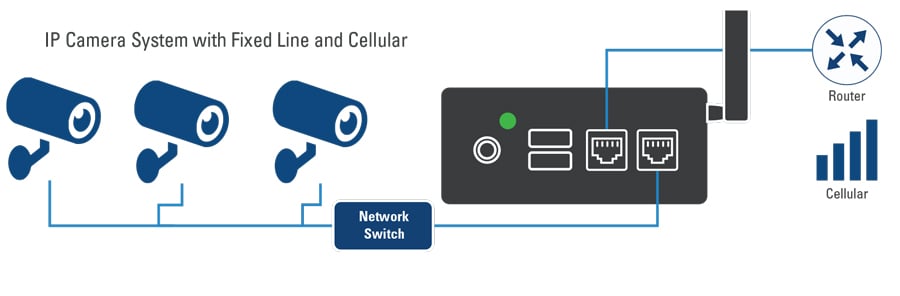

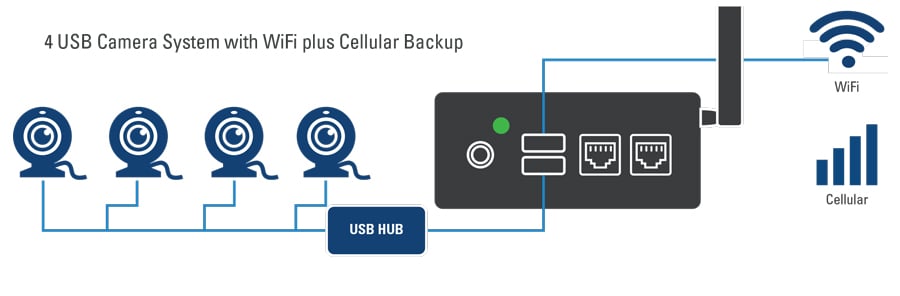

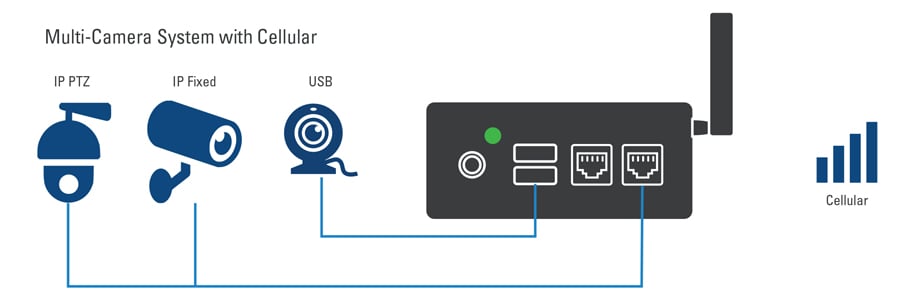

Specta 4K use case diagrams

ni_spectra-4k_use-case-1

ni_spectra-4k_use-case-2

ni_spectra-4k_use-case-3
