Network Innovations

Enclosure M2M Multitech-LoRaWAN™ Battery Backup

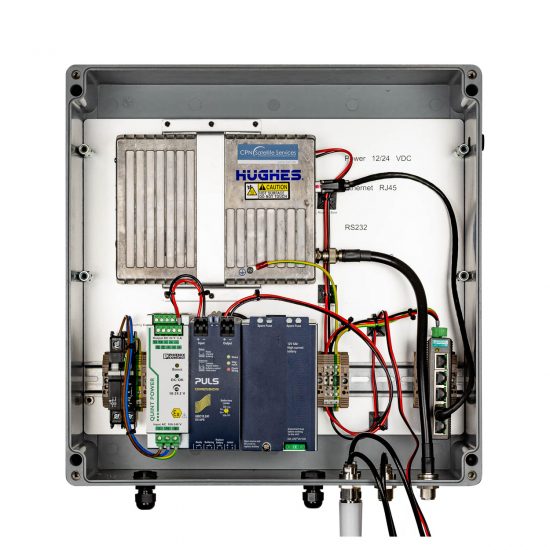

The CPN Enclosure M2M MULTITECH-LoRaWAN™ Battery Backup includes all the necessary components to feed an internal mounted Hughes 9502 M2M BGAN satellite terminal and a MULTITECH CONDUIT V1.5 SPI LoRaWAN™ Gateway with the required power.
Running the LoRaWAN™ network via the reliable IP connectivity over the Inmarsat Broadband Global Area Network (BGAN) in rural areas.

The system also includes an industrial power supply and a powerful backup battery to protect the system against external power failures. The transmission of the data will be ensured for a limited time, even when the external power source is interrupted at the unmanned site.

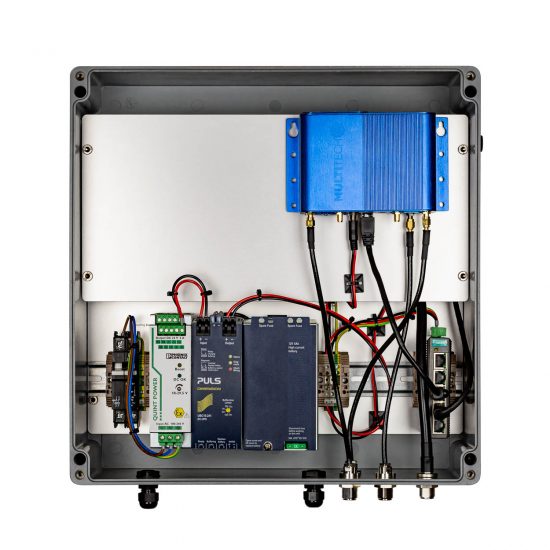

The MULTITECH CONDUIT V1.5 SPI LoRaWAN™ Gateway installed inside the CPN Enclosure is protected against harsh weather conditions.
It is specially designed for unmanned installations with harsh weather conditions (IP 67, wide temperature range) and unstable electrical power supply.





The CPN Enclosure M2M MULTITECH-LoRaWAN™ Battery Backup includes all the necessary components to feed an internal mounted Hughes 9502 M2M BGAN satellite terminal and a MULTITECH CONDUIT V1.5 SPI LoRaWAN™ Gateway with the required power.
Running the LoRaWAN™ network via the reliable IP connectivity over the Inmarsat Broadband Global Area Network (BGAN) in rural areas.

The system also includes an industrial power supply and a powerful backup battery to protect the system against external power failures. The transmission of the data will be ensured for a limited time, even when the external power source is interrupted at the unmanned site.

The MULTITECH CONDUIT V1.5 SPI LoRaWAN™ Gateway installed inside the CPN Enclosure is protected against harsh weather conditions.
It is specially designed for unmanned installations with harsh weather conditions (IP 67, wide temperature range) and unstable electrical power supply.

CPN-Enclosure-M2M-Multitec-Battery-Backup-2-550x550





The CPN Enclosure M2M MULTITECH-LoRaWAN™ Battery Backup is a ready to install solution. Simply build up LoRaWAN™
Networks in rural areas for machine-to-machine (M2M) and IoT applications such as:

  • Mining, Oil and gas
  • Agriculture
  • Environmental monitoring,

The CPN Enclosure M2M MULTITECH-LoRaWAN™ Battery Backup is a
cost-effective, always-on, real-time, high-speed IoT- System which
contains:

  • Double circuit Breaker
  • Phoenix 120/240V AC/DC 50/60 Hz industrial power supply (QUINT-PS/1AC/24DC/ 5/CO)
  • Puls uninterruptible power supply (UPS) (UBC10.241-N1)
  • Moxa unmanaged switch (EDS-205A-T)
  • IP-67 protected for installations in harsh environments Easy to install

Optional:

  • Dual Loop High Gain Antenna (gain 10dBI) for LTE Operation, 698-960 and 1710-2700 MHz

Special BGAN M2M Service plans that dramatically lower monthly cost are available.

  • Weight
    11 kg / 24.25 lbs
    (without satellite terminal)
  • Dimensions
    40,8 x 43,2 x 16,0 cm
    16.06 x 17.00 x 6,29 inches
  • Input Voltage
    120/230 V AC 50/60 Hz
  • Dust and Water
    IP-67 protection class
  • Temperature
    -20°C to +50°C charge
    -4°F to +122°F charge

    -40°C to +60°C discharge
    -40°F to + 140°F discharge
  • Interfaces
    5 x 10/100 RJ45 port (non PoE)
