Network Innovations

Enclosure LTE Extension

The CPN Enclosure LTE Extension for the Hughes 9502 one-piece connects a Hughes 9502 one-piece terminal, that provides reliable IP connectivity over the Inmarsat Broadband Global Area Network (BGAN) and the industrial-grade LTE gateway AirLink® Raven RV50. The AirLink® Raven RV50 is the industry’s lowest power LTE gateway.





The CPN Enclosure LTE Extension for the Hughes 9502 one-piece connects a Hughes 9502 one-piece terminal, that provides reliable IP connectivity over the Inmarsat Broadband Global Area Network (BGAN) and the industrial-grade LTE gateway AirLink® Raven RV50. The AirLink® Raven RV50 is the industry’s lowest power LTE gateway.

The CPN Enclosure LTE Extension for the Hughes 9502 one-piece upgrades a Hughes terminal to a unique, cost-effective, and reliable LTE/BGAN dual-mode system.

The CPN Enclosure LTE Extension for the Hughes 9502 one-piece integrates all necessary passive components to feed an external mounted Hughes 9502 one-piece satellite modem and the LTE gateway with the required power. The Dual-Mode operation delivers failover capabilities with automatic switching between cellular networks and the BGAN service. All components are installed inside the CPN Enclosure to be protected against harsh weather conditions.

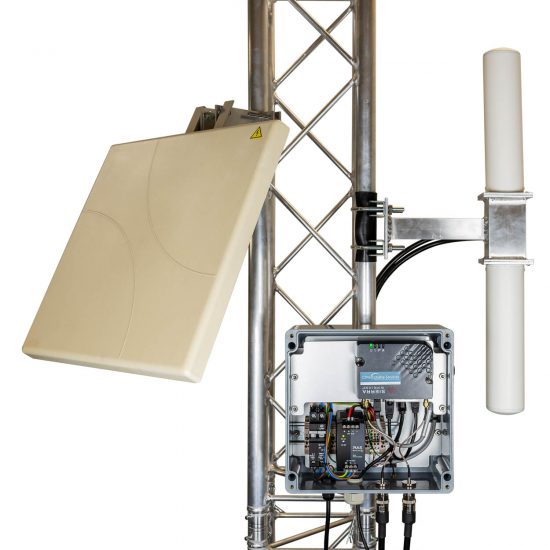

CPN-Enclosure-LTE-Extension-1-550x550





The CPN Enclosure LTE Extension for the Hughes 9502 one-piece is a ready to install solution. Simply connect both - the BGAN Terminal and the LTE gateway - via the integrates unmanaged Ethernet switch with the external sensors or devices for machine to machine (M2M) and  IoT applications such as:

  • Border Control
  • Site surveillance
  • Security Monitoring of remote locations
  • Mining, Oil and gas
  • pipeline monitoring/control

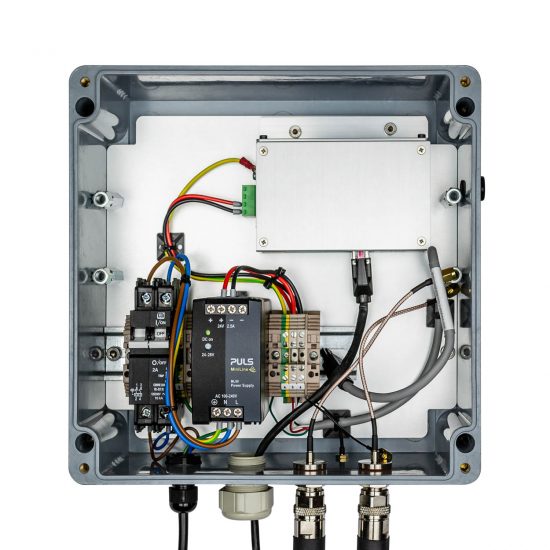

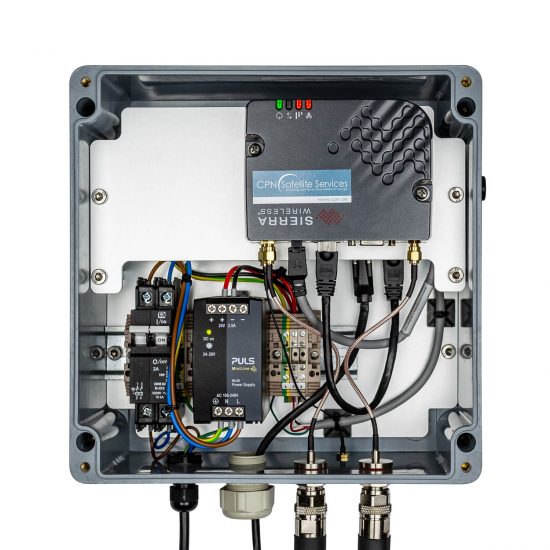

The CPN Enclosure LTE Extension for the Hughes 9502 one-piece is a cost-effective, always-on, real-time, high-speed M2M terminal which contains:

  • Double circuit Breaker
  • PULS power supply (ML60.242)
  • Moxa unmanaged switch (EDS-205-T)
  • AirLink® Raven RV50 LTE gateway
  • IP-67 protected for installations in harsh environments
  • Easy to install

Optional:

  • Dual Loop High Gain Antenna (gain 10dBI) for LTE Operation,
    698-960 and 1710-2700 MHz
  • RTU
TÜV/CB report optional
  • Weight
    4,3 kg / 9.48 lbs
  • Dimensions
    26,2 x 27,8 x 12,0 cm
    10.32 x 11.34 x 4.72 inches
  • Dust and Water
    IP-67 protection class
  • Temperature
    -40°C to +65°C operating
    -40°F to +149°F operating
  • Input voltage
    120/240 V AC 50/60 Hz
  • Power consumption
    max. 60W
  • Interfaces
    5 x 10/100 RJ45 port (non PoE)
    2 x N Port (Cellular Antennas)
    1 x SMA Port (GPS Antenna)
