    Network Innovations

    Enclosure Class 2

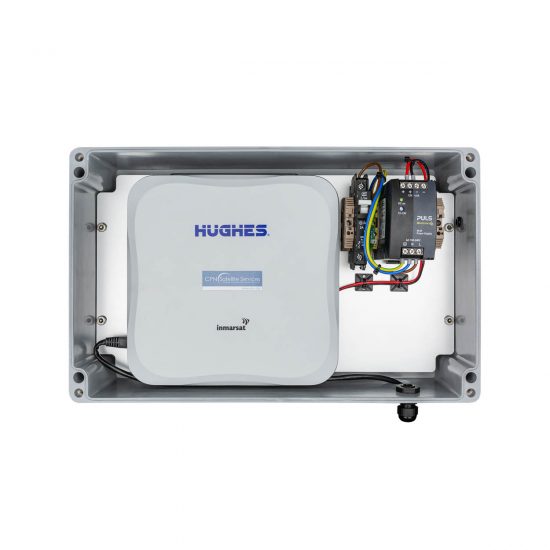

    The CPN Enclosure Class 2 is a non-metallic, ruggedized protection enclosure for the Cobham EXPLORER 300 / 500 / 510 / 540 & Hughes 9202 BGAN Terminals.

    The CPN Enclosure Class 2 includes an industrial grade power supply (120/240 V AC 50/60 Hz) to feed the internal mounted satellite terminal with the required power.

    The internal mounted industrial power supply and our IP 67 rated cable glands make it possible to use standard Ethernet- and power cables - up to 100 meters - for the installation of the CPN Enclosure Class 2. No special cables are required anymore!





    The CPN Enclosure Class 2 is a non-metallic, ruggedized protection enclosure for the Cobham EXPLORER 300 / 500 / 510 / 540 & Hughes 9202 BGAN Terminals.

    The CPN Enclosure Class 2 includes an industrial grade power supply (120/240 V AC 50/60 Hz) to feed the internal mounted satellite terminal with the required power.

    The internal mounted industrial power supply and our IP 67 rated cable glands make it possible to use standard Ethernet- and power cables - up to 100 meters - for the installation of the CPN Enclosure Class 2. No special cables are required anymore!

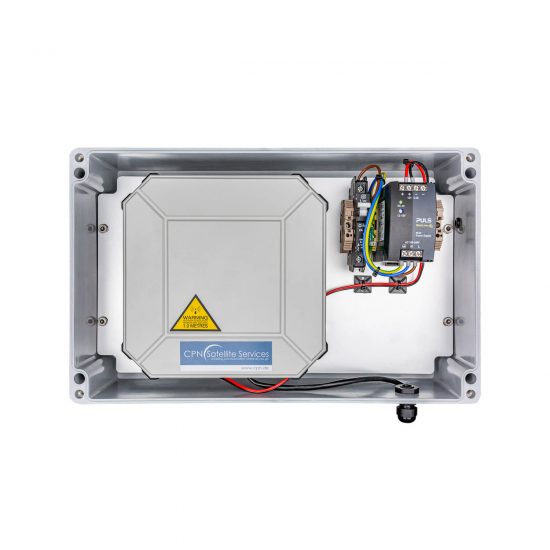

    CPN-Enclosure-Class-2-Cobham-1-550x550





    With an Ingress Protection Class of IP-67, it is specifically designed to enable permanent outdoor installations of the BGAN. It shield´s the satellite modem from accumulation – dust, debris, and water, or the effects of harsh temperatures and weather.

    Including:

    • Enclosure IP-67
    • Aluminum baseplate
    • DIN rail
    • Circuit breaker
    • Inside wiring
    • Cable glands
    • Puls Power Supply 24V 60W  ML60.242) - 40°C to +70°C / -40°F to 158°F

    The CPN Enclosure Class 2 is also available as cooling or heating version, giving you the opportunity to choose exactly the right CPN Enclosure for your requirements.

    • Weight
      4,8 kg / 10.58 lbs
    • Dimensions
      40,0 x 25,0 x 12,0 cm
      15.75 x 9.84 x 4.72 inches
    • Non-Penetrating Pole Mount
      2.5 – 6.4 cm mounting
    • Dust and Water
      IP-67 protection class
    • Temperature
      -25°C to +55°C operating
      -13°F to +131°F operating
    • Input Voltage
      120/240 V AC 50/60 Hz
    • Power consumption
      Max 60W
