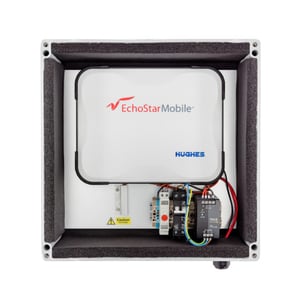

CPN-Enclosure-Class-1-for-Echostar-Heating-8915-550x550

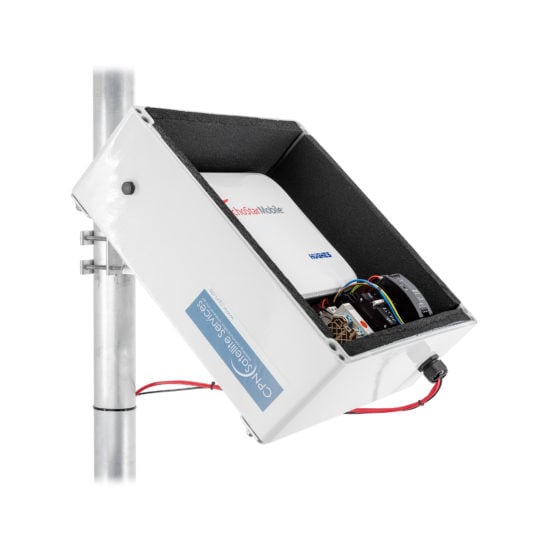

CPN-Enclosure-Class-1-for-Echostar-Heating-8779-550x550

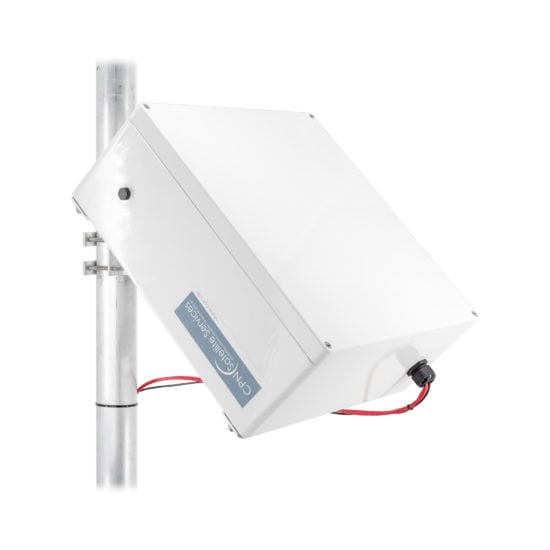

CPN-Enclosure-Class-1-for-Echostar-Heating-8780-550x550

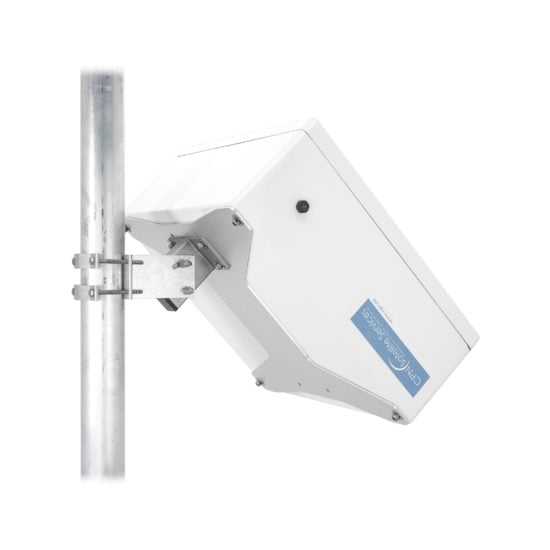

CPN-Enclosure-Class-1-for-Echostar-Heating-8785-550x550

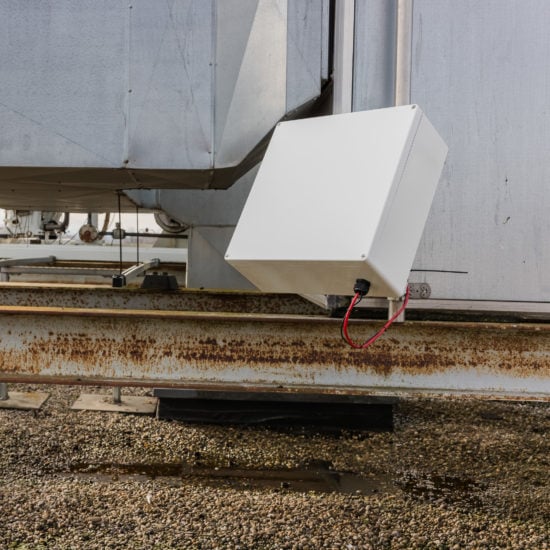

CPN-Enclosure-Class-1-for-Echostar-Heating-8793-550x550

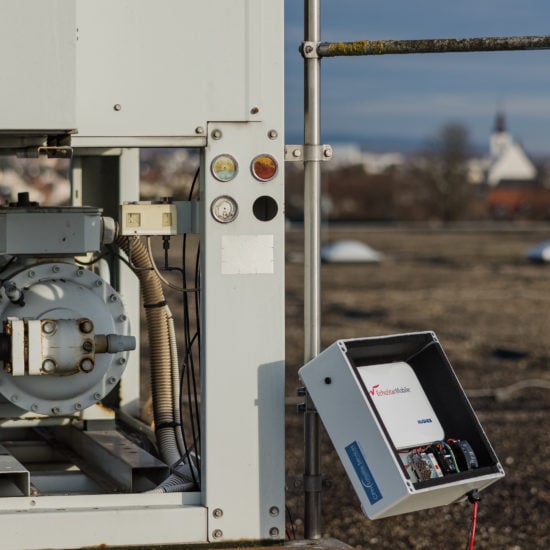

CPN-Enclosure-Class-1-for-Echostar-Heating-8863-550x550

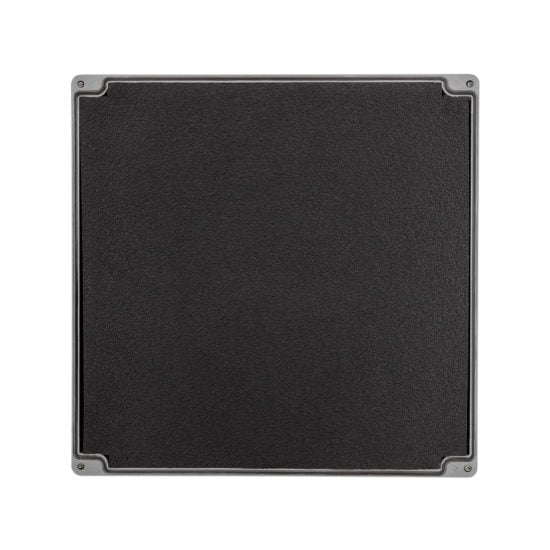

CPN-Enclosure-Class-1-for-Echostar-Heating-8769-550x550
Network Innovations

Enclosure Class 1 for EchoStar Heating



The CPN Enclosure Class 1 for Echostar Heating is a non-metallic, ruggedized protection enclosure for Hughes 4200 PDT satellite terminals with a heating device build-in the Enclosure.

With an Ingress Protection Class of IP-67, it is specifically designed to enable permanent outdoor installations of the Hughes 4200 PDT Terminal. It shields the satellite terminal from accumulation of dust, debris and water, or the effects of harsh temperatures and weather.





The CPN Enclosure Class 1 for Echostar Heating is a non-metallic, ruggedized protection enclosure for Hughes 4200 PDT satellite terminals with a heating device build-in the Enclosure.

With an Ingress Protection Class of IP-67, it is specifically designed to enable permanent outdoor installations of the Hughes 4200 PDT Terminal. It shields the satellite terminal from accumulation of dust, debris and water, or the effects of harsh temperatures and weather.

CPN-Enclosure-Class-1-for-Echostar-Heating-8915-550x550





Application fields
  • Condition Monitoring
  • SCADA
  • Weather or seismic stations
  • Surveillance
  • Remote Office

The CPN Enclosure Class 1 for EchoStar Heating comes completely pre-assembled including pole mount kit with adjustable elevation angle for easy installation. No cutting or drilling necessary. No degradation of throughput or GPS time-to-fix. Rounded edges, minimal protrusions or exposed pocket areas for the accumulation of dust or debris.

This solution is insulated and controlled by a integrated thermostat and can be permanently installed in very cold locations down to –40°C / -40°F.

  • Weight
    8,9 kg (without satellite terminal)
  • Dimensions
    408 x 433 x 160 mm
    16.0 x 17.0 x 6.3 inches
  • Dust and Water
    IP-67 protection class
  • Temperature
    -40°C to +65°C operating
    -40°F to +149°F operating
  • Non-penetrating pole mount
    25 – 64 mm
  • Interfaces
    1 x Cable gland (IP-67) for power cable
    1 x Cable gland (IP-67) for ethernet and phone cables
  • Power
    Input Voltage: 100 – 240V AC
  • Power consumption
    Power supply: 60W
    Heating module: 13W
