Network Innovations

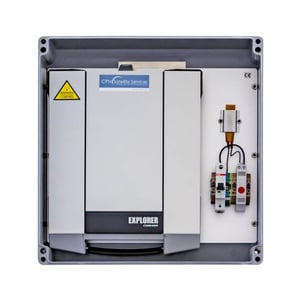

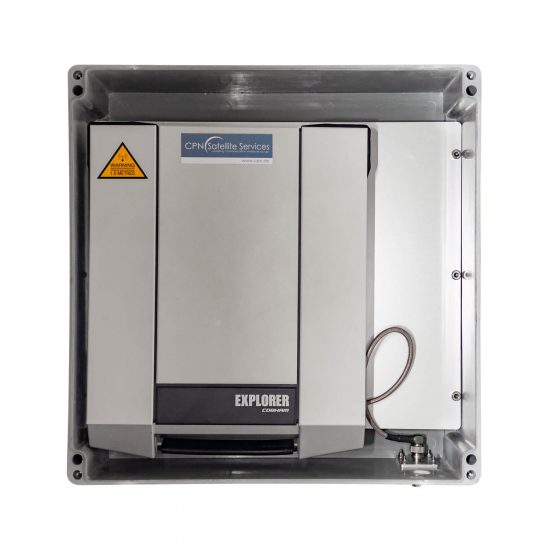

Enclosure Class 1 for Cobham Heating



The CPN Enclosure Class 1 for Cobham Heating is a non-metallic, ruggedized protection enclosure for Cobham EXPLORER® 710 satellite antennas.

With an Ingress Protection Class of IP-67, it is specifically designed to enable permanent outdoor installations of the EXPLORER® 710 antenna.
It shields the satellite modem from the accumulation of dust, debris, and water, or the effects of harsh temperatures and weather.





The CPN Enclosure Class 1 for Cobham Heating is a non-metallic, ruggedized protection enclosure for Cobham EXPLORER® 710 satellite antennas.

With an Ingress Protection Class of IP-67, it is specifically designed to enable permanent outdoor installations of the EXPLORER® 710 antenna.

It shields the satellite modem from the accumulation of dust, debris, and water, or the effects of harsh temperatures and weather.

CPN-Enclosure-Class-1-Cobham-Heating-43-550x550





Application fields
  • Condition Monitoring
  • SCADA
  • Weather or seismic stations
  • Surveillance
  • Remote Office

The CPN Enclosure Class 1 for Cobham Heating comes completely pre-assembled including pole mount kit with adjustable elevation angle for easy installation. No cutting or drilling necessary. No degradation of throughput or GPS time-to-fix. Rounded edges, minimal protrusions or exposed pocket areas for the accumulation of dust or debris.

  • Weight
    7 kg (without satellite terminal)
  • Dimensions
    405 x 400 x 120 mm
    15.95 x 15.75 x 4.73 inches
  • Dust and Water
    IP-67 protection class
  • Temperature
    -25°C to +60°C operating
    -13°F to +131°F operating
  • Non-penetrating pole mount
    25 – 64 mm
  • Interfaces
    TNC Connector
