The CPN Enclosure 9502 M2M one-piece with Battery Backup integrates all necessary passive components to feed an internal mounted Hughes 9502 M2M BGAN satellite terminal with the required power, to provide a reliable IP connectivity over the Inmarsat Broadband Global Area Network (BGAN).
Easy installation solution
Simple connection to BGAN Terminal
Double circuit Breaker
IP-67 protected for installations in harsh environments
The CPN Enclosure 9502 M2M one-piece with Battery Backup integrates all necessary passive components to feed an internal mounted Hughes 9502 M2M BGAN satellite terminal with the required power, to provide a reliable IP connectivity over the Inmarsat Broadband Global Area Network (BGAN).
An Moxa Serial Device Server (RTU) is the interface between the sensors (serial Interface) and the BGAN Terminal.

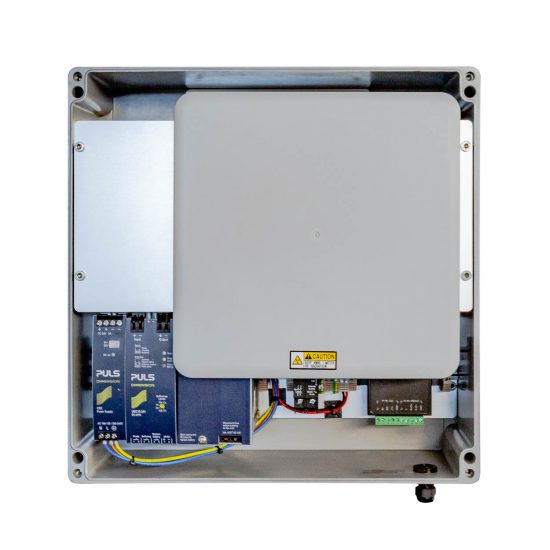

The Hughes 9502 modem and the antenna are installed inside the CPN Enclosure to protect them against harsh weather conditions and not to be visible as a satellite Terminal. The system also includes an industrial power supply and a powerful Battery Backup to protect the system against external power failures. The transmission of the data will be ensured for a limited time, even when the external power source is interrupted at the unmanned site.
The CPN Enclosure 9502 M2M one-piece with Battery Backup is a ready to install solution. Simply connect the BGAN Terminal with the sensors or data loggers directly to the serial port of the RTU for SCADA and machine-to-machine (M2M) and IoT applications such as:
Mining, Oil and gas
pipeline monitoring/control
well site automation and surveillance
environmental monitoring, SmartGrid

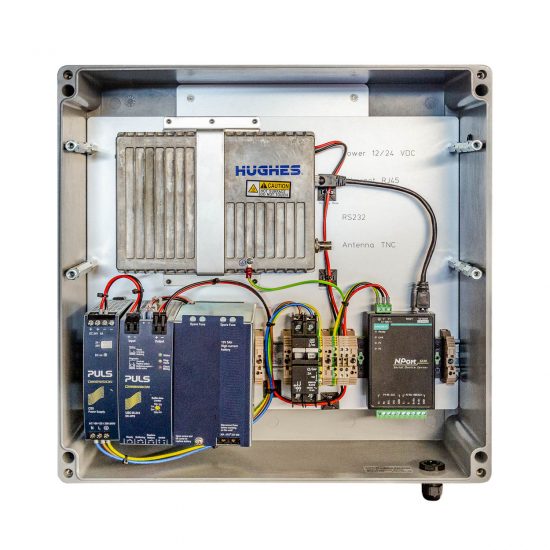

The CPN Enclosure 9502 M2M one-piece with Battery Backup is a cost-effective, always-on, real-time, high-speed M2M terminal which contains:
Double circuit Breaker
Puls 120/240V 50/60 Hz AC/DC industrial power supply (CS5.241)
Puls uninterruptible power supply (UPS) (UBC10.241-N1)
MOXA serial device server (RTU) (N Port 5230-T)

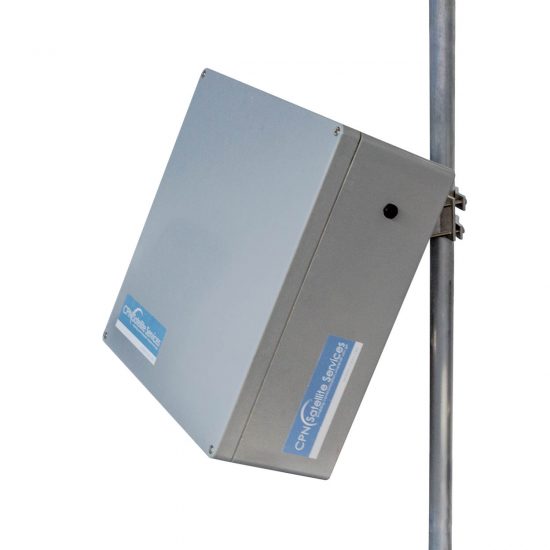

Pole mounting kit to line up the
Enclosure to the satellite The CPN Enclosure 9502 M2M one-piece with Battery Backup is:
IP-67 protected for installations in harsh environments
Easy to install
Special BGAN M2M Service plans that dramatically lower monthly cost are available.
